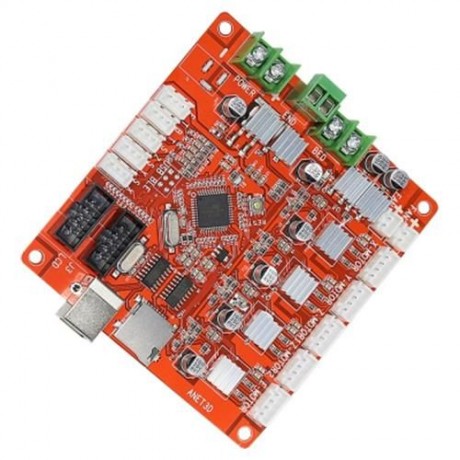

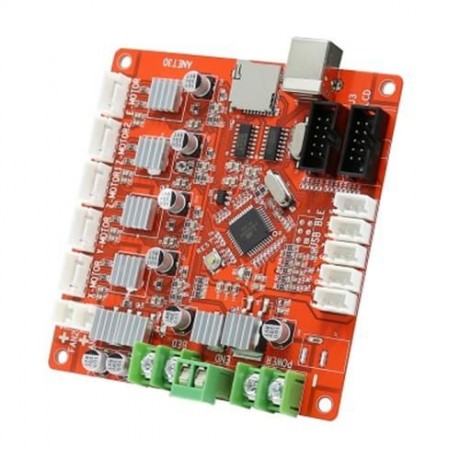

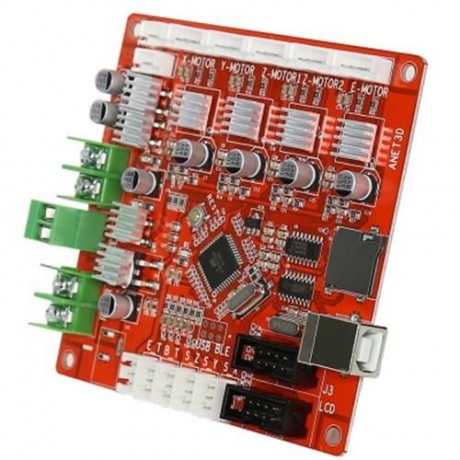

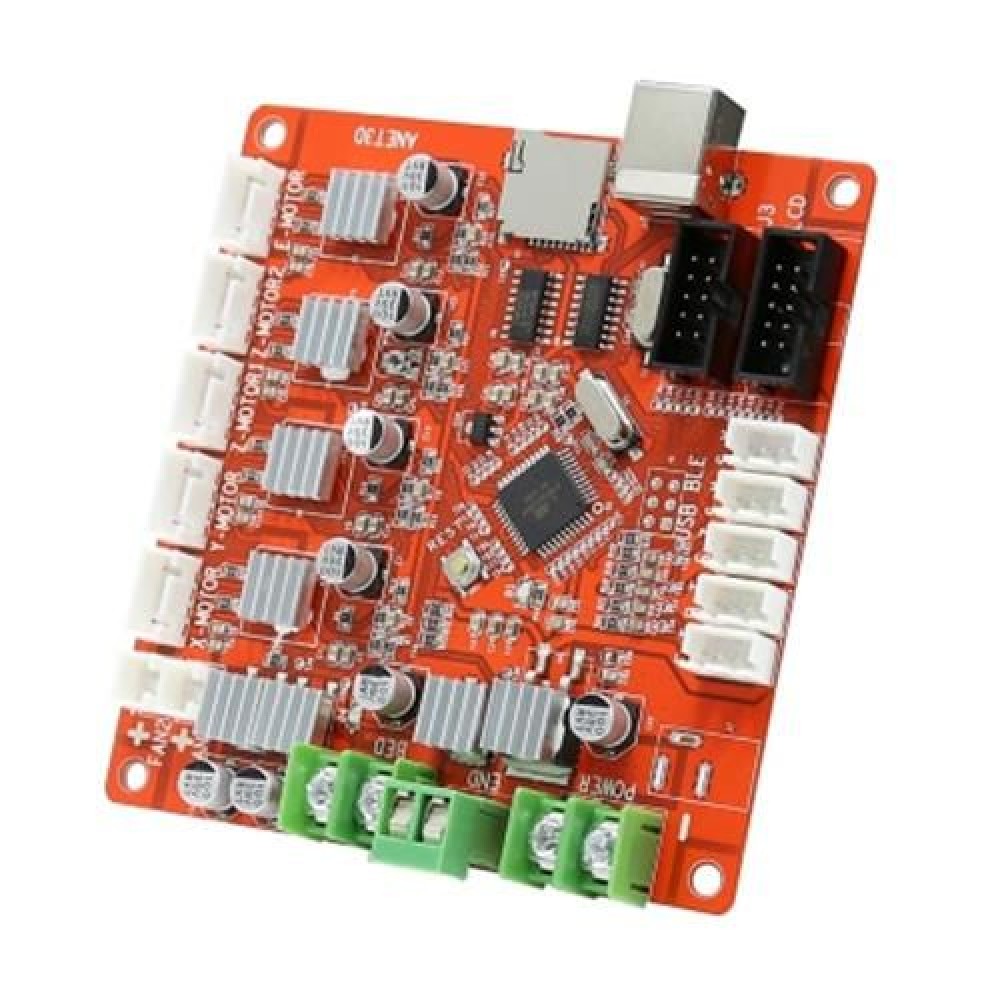

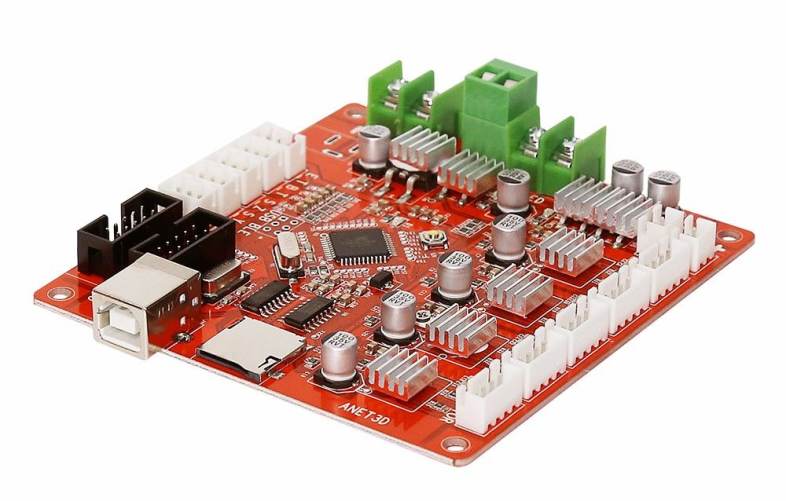

ANET V1.0 RAMPS1.4 UPDATE VERSION 3D PRINTER CONTROLLER BOARD (RED)

Main Features:
- Highly integrated one board, to solve the Ramps1.4 combination interface cumbersome problem.
- Optimized layout routing and thermal design, the whole board performance is more stable.
- Large USB, more stable connection, more concise interface, wiring more convenient, more stable, longer life.
- On-board 4-channel A4988 16-step stepping motor driver ( Z-Axis motor interface ).
- PWM DC 3 outputs ( 1 channel high current, 3 channel medium current, 2 channel small current ).
- Mos tube with high performance and low on-resistance is used for driving, and the heat dissipation is better.
- ST original power supply chip, support 12V - 24V power input to solve the Ramps voltage conversion chip fever problem.
- Can accept 24V input, the same system power can be reduced to 1/4 of the hot bed current, solve the hot-bed MOS tube heating problem effectively.
- Can use open source firmware Marlin, configuration and Ramps1.4 exactly the same, can directly replace Ramps1.4.
- Can be directly connected Ramps1.4, 2004LCD control panel and 12864LCD control panel ( remove the L-type adapter plate ).

Note: the green terminals' color will be randomly sent, but has no influence to its operation.
