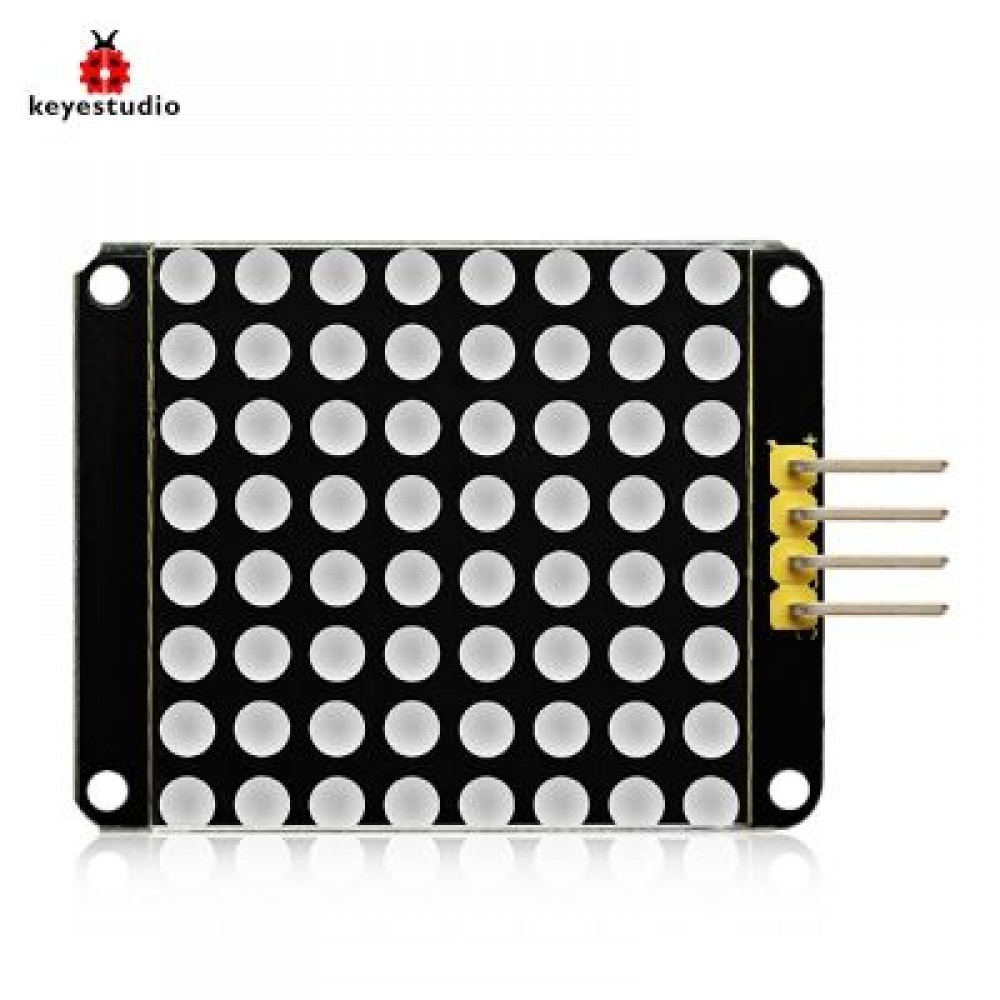

Keyestudio HT16K33 I2C 8 x 8 LED Dot Matrix Module for Arduino (BLACK)

Keyestudio HT16K33 I2C 8 x 8 LED Dot Matrix Module for Arduino (BLACK)

RM10.35
Product Code: 10189079
Stock Instock

Overview

Features at a glance: - Adopt constant-current drivers for ultra-bright, consistent color, 1/16 step display dimming, all via a simple I2C interfac...
Features at a glance:
- Adopt constant-current drivers for ultra-bright, consistent color, 1/16 step display dimming, all via a simple I2C interface

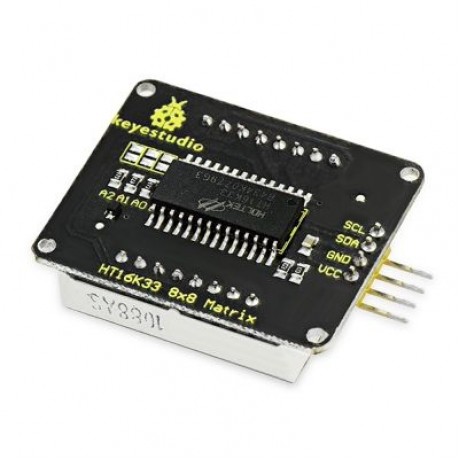

- The matrix uses a driver chip which will do all the heavy lifting for you, with a built-in clock to multiplex the display

Parameters:
- IO interface: I2C
- Material: FR4
- Working voltage: DC 5V
- Working current: 30mA
- Working temperature: -10 Deg.C - 50 Deg.C
0.015
Package weight: 0.038 kg
Product Size(L x W x H): 4.60 x 3.40 x 1.20 cm / 1.81 x 1.34 x 0.47 inches
Package Size(L x W x H): 8.50 x 7.20 x 1.50 cm / 3.35 x 2.83 x 0.59 inches
Package Contents: 1 x Module
