MAKERFIRE ARMOR 67 67MM MINI FPV RACING DRONE BNF 5.8G 600TVL CAMERA / 1103 10000KV BRUSHL

0 reviews | Write a review

RM642.96

color

BLACK AND RED

Size

Quantity

Qty

Product Code: 10034167

Stock Instock

Overview

Description:Makerfire Armor 67 67mm micro FPV racing drone is an incredible brushless palm-sized racer with F3 flight controller, 1103 10000KV high ...

Description:

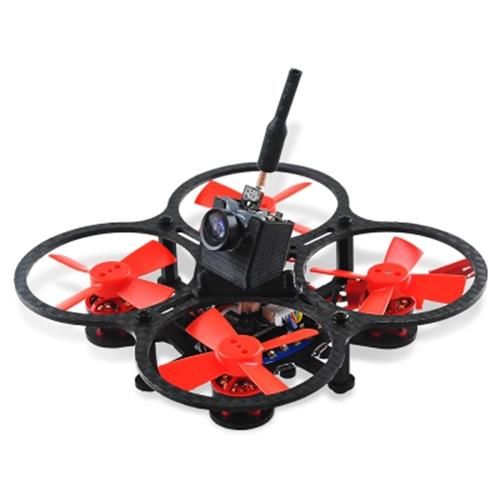

Makerfire Armor 67 67mm micro FPV racing drone is an incredible brushless palm-sized racer with F3 flight controller, 1103 10000KV high RPM motor and 4-in-1 BLHeli - S 10A ESC for flying at a furious speed. The integrated carbon fiber frame serves as an excellent protection for everything inside, effectively ensuring the durability of the drone. Therefore, it is resistant to considerable impact from the outside, giving you a more carefree flight.

Main Features:

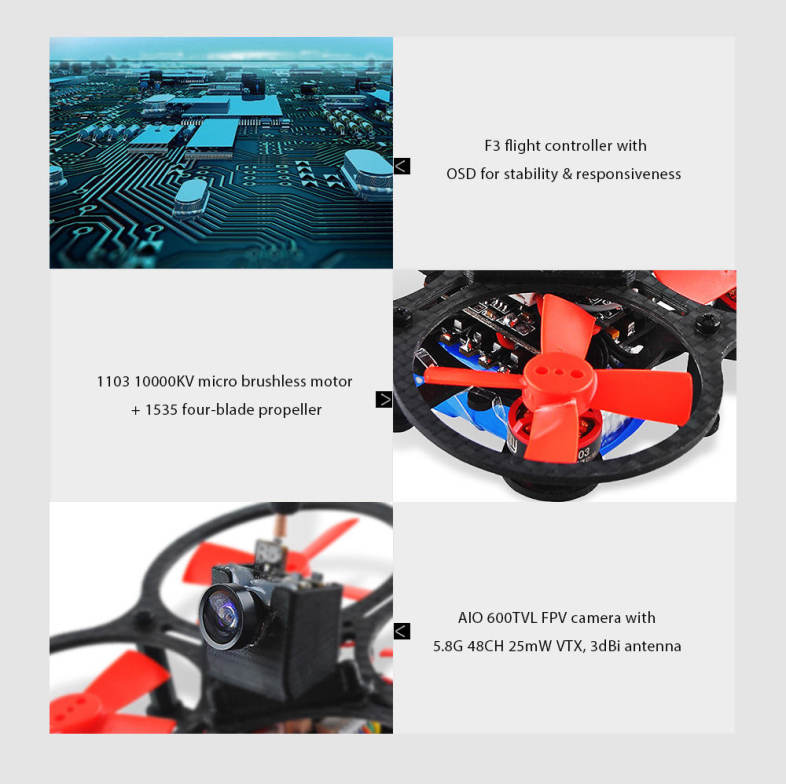

● Powerful and stable - 1103 10000KV brushless motor, and 1535 four-blade propellers
● High-performance F3 flight controller with BetaFlight OSD, 4-in-1 BLHeli - S 10A ESC
● Integration of 600TVL camera, 5.8G 48CH 25mW VTX, and 3dBi whip antenna

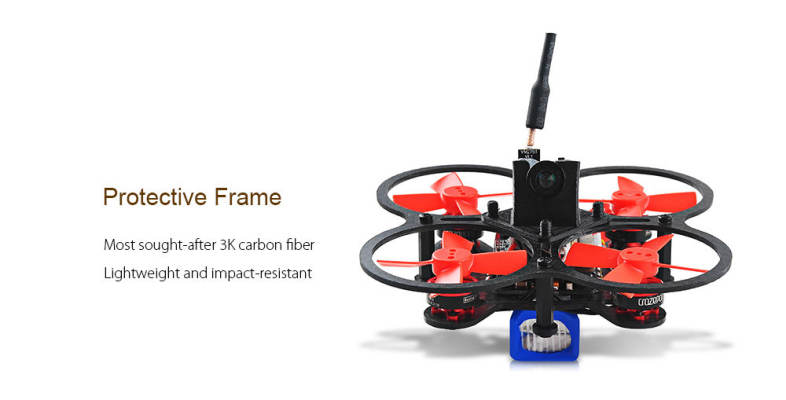

● Impact-resistant 3K full carbon fiber frame protects the propellers, motors and so on
● 400mAh 7.4V 2S 30C LiPo battery provides you with about 5 minutes' flying

Specifications:

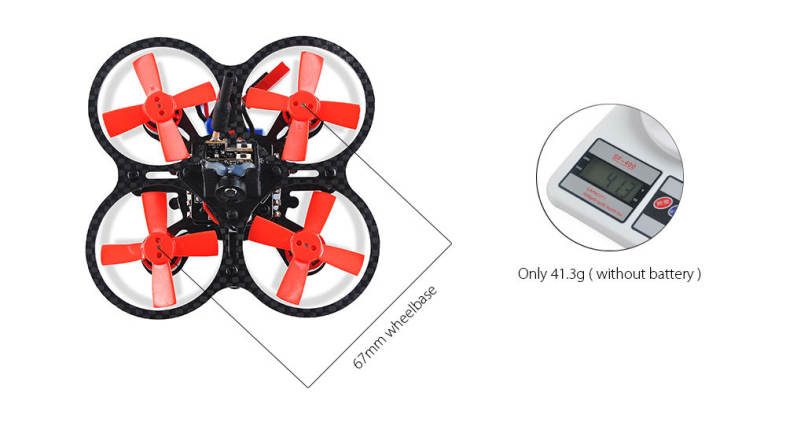

Wheelbase: 67mm
Flight controller: BetaFlight F3 6DOF with OSD
Flight controller firmware: BetaFlight OMNIBUS
Brushless motor: 1103 10000KV
Brushless ESC: 4-in-1 BLHeli - S 10A
Propeller: 1535 four-blade
Camera: 1/4 inch CMOS 600TVL
Field of view: 120 degree
TV system: NSTC / PAL / AUTO
Video transmitter: 5.8G 48CH 25mW
Battery: 400mAh 7.4V 2S 30C LiPo
Weight: 63g ( with battery ), 41.3g ( without battery )

Click here to download the frequency table.

Brand: Makerfire
Type: Frame Kit
Version: BNF

Model: 1103
Motor Type: Brushless Motor
KV: 10000

Flight Controller Type: F3

Video Resolution: 600TVL
Sensor: CMOS

Firmware: BLHeli-S
Functions: DShot300,DShot600,Oneshot125

Battery (mAh): 400mAh
Battery Coulomb: 30C
Flying Time: about 5mins
Charging Time.: 25mins

Package weight: 0.334 kg
Product size (L x W x H): 9.40 x 9.40 x 3.60 cm / 3.7 x 3.7 x 1.42 inches
Package size (L x W x H): 16.40 x 11.40 x 5.80 cm / 6.46 x 4.49 x 2.28 inches

Package Contents: 1 x Drone ( Battery Included ), 1 x Set of Spare Propellers, 1 x USB Cable, 1 x Battery Strap
