LCD DIGITAL 60V / 100A WATT METER BATTERY BALANCE POWER VOLTAGE CHECKER ANALYZER FOR DC RC

Estimated Delivery 7 to 9 Days

Tracking number available in 3 days time.

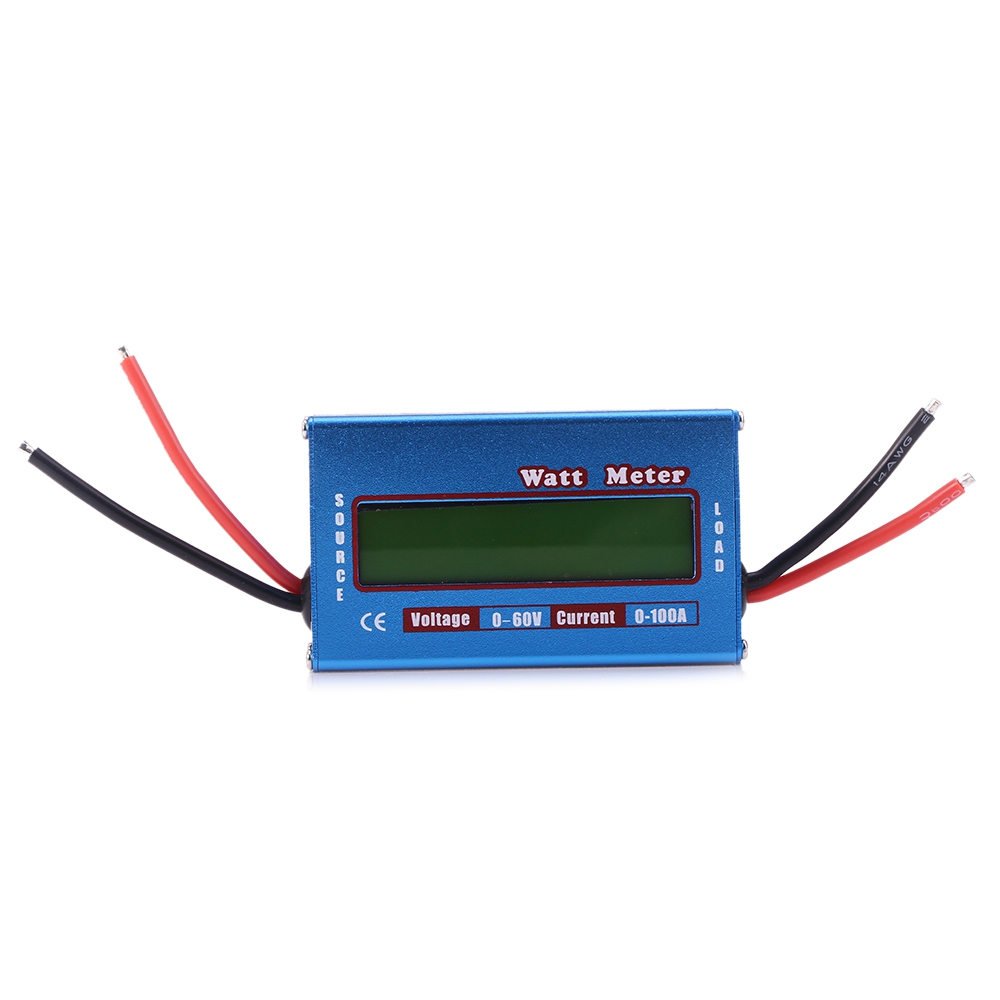

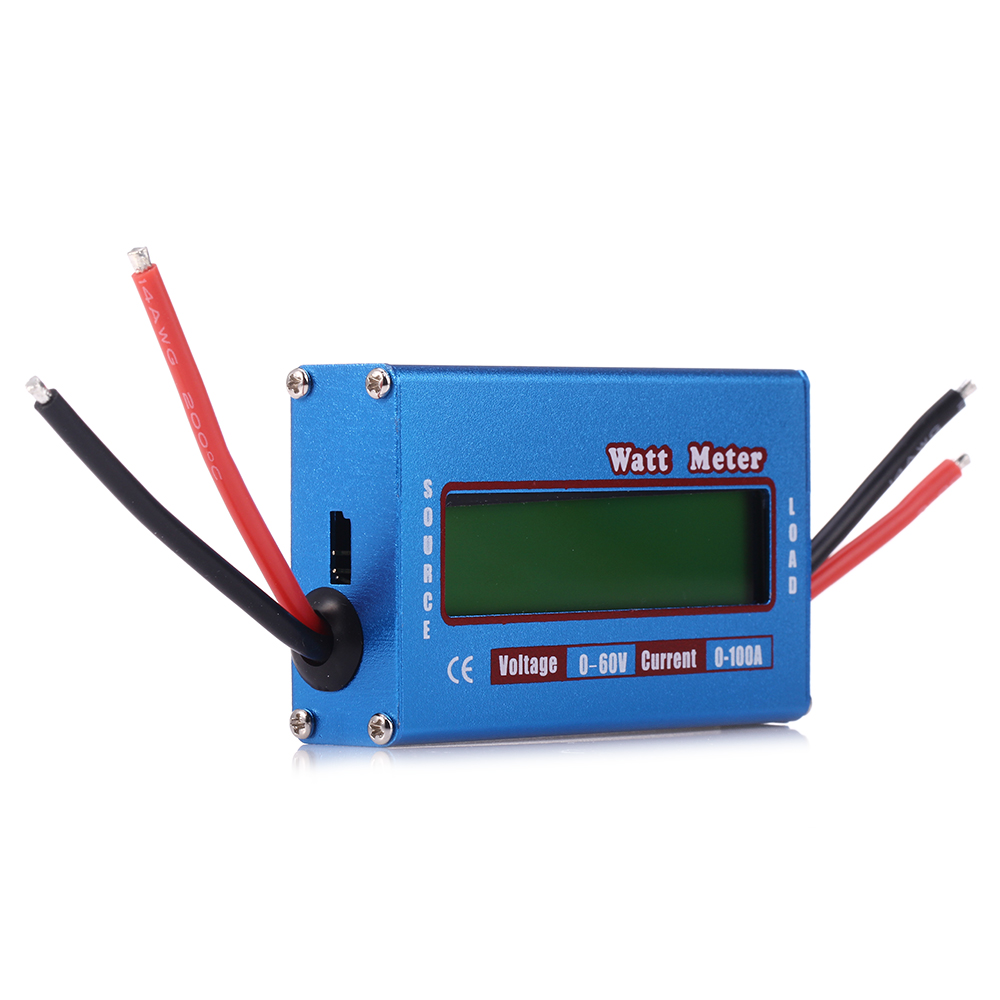

LCD Digital 60V / 100A Watt Meter Battery Balance Power Voltage Checker Analyzer for DC RC Helicopter

This watt meter is an excellent addition to your RC hobby, DC circuits, solar system, boat / RV and battery backup systems! Great little gadget, very useful to monitor both charging and draining of batteries.

What a multipurpose Meter it is! A power meter, a volt meter, an amp-hour meter, ammeter and energy meter. Everything all in one unit! This is the perfect troubleshooting tool. This all-in-one watt meter is indispensable for analyzing, testing and troubleshooting any DIY DC power project.

Highlights:

● Digital LCD screen: Gives clear crisp number readings

● Handles up to 100 amps intermittently and 50 amps continuous duty

● Connecting load end to the battery provides real-time battery charging reading

● Handles 0 to 60 volts. Works on 12, 24, 36, and 48 volt battery bank systems

● Extremely low power consumption of 7mA. More efficient than any LED meter

● Measure energy ( Wh ) , charge ( Ah ) , power ( W ) , current ( A ) and voltage ( V )

● Accurate and precise 0.01 A current and 0.01 V voltage resolutions

● Measures peak Amps, peak Watts ( except for Doc Wattson ) and Voltage minimum ( sag )

● Rugged- handles 50A continuous and 100 A peak at 60V

● Acts like a wire so does not affect model's performance. Precision Alu-Chrom current sensing resistor, with only 0.001 Ohms resistance and circuitry that draws only 7mA

● Uses DSP to increase ADC resolution and differential measurement amplifiers to increase noise immunity

Specifications:

Voltage: ( 0 )V - 4V - 60V 0.01V ( Resolution )

Current: 0 - 100 A.P 0.01A ( Resolution )

Power: 0 - 6554 W 0.1W ( Resolution )

Charge: 0 - 65 Ah 0.001Ah ( Resolution )

Energy: 0 - 6554 Wh 0.1 Wh ( Resolution )

Measurement update period: 400ms

Signal sampling rate: samples / s

Data queue sequence time: 2 seconds

In circuit resistance: 0.001 Ohms

Operation Current: 7mA.

Package weight: 0.113 kg

Product size (L x W x H): 8.5 x 5.0 x 2.0 cm / 3.34 x 1.97 x 0.79 inches

Package size (L x W x H): 11.0 x 7.0 x 2.5 cm / 4.32 x 2.75 x 0.98 inches

Package Contents: 1 x LCD Digital 60V / 100A Watt Meter Battery Balance Power Voltage Checker Analyzer for DC RC Helicopter, 1 x English User Manual

Warranty: 3 months
